    single and two-color lights blue red push button tact tactile switch with light led

    single and two-color lights blue red push button tact tactile switch with light led Featured Image
    • single and two-color lights blue red push button tact tactile switch with light led
    • single and two-color lights blue red push button tact tactile switch with light led
    • single and two-color lights blue red push button tact tactile switch with light led
    • single and two-color lights blue red push button tact tactile switch with light led

    Short Description:

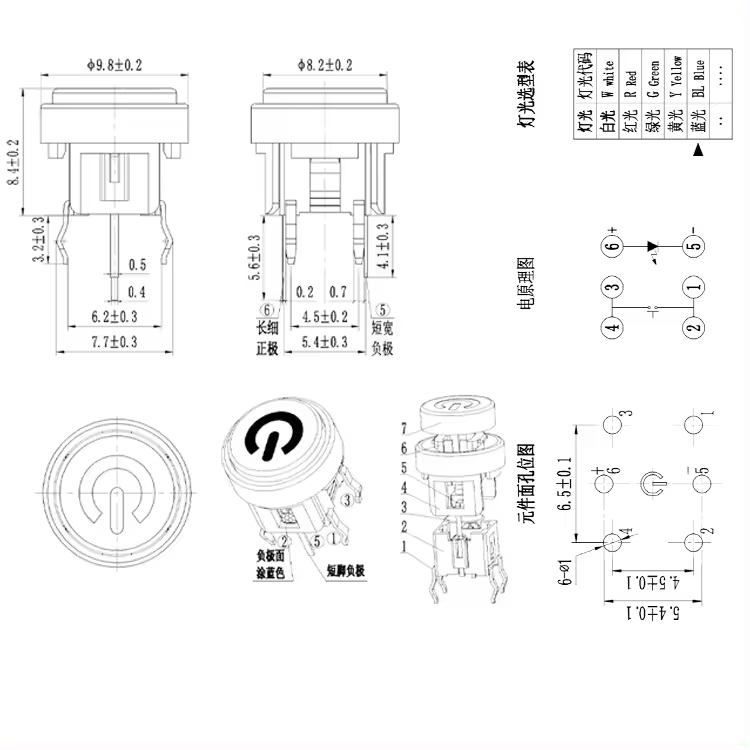

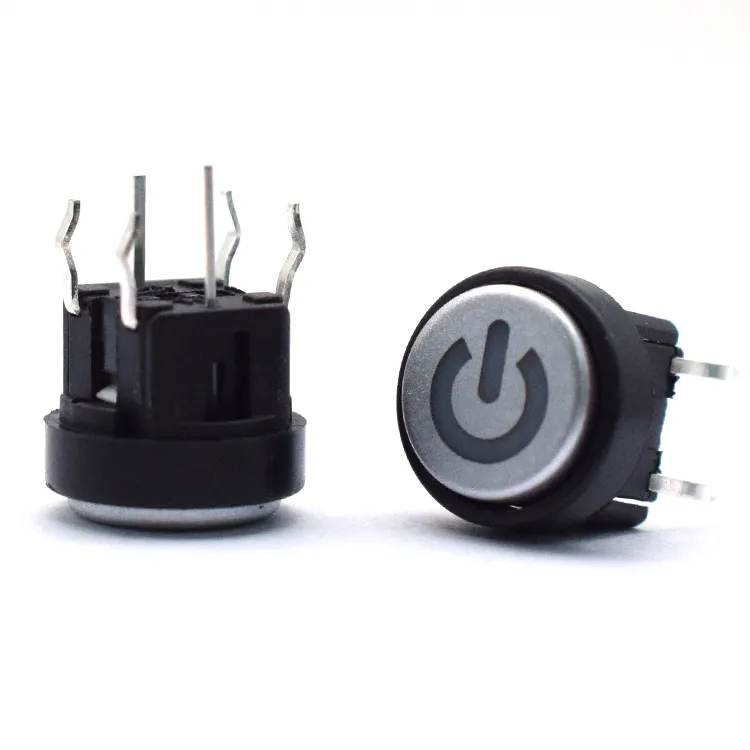

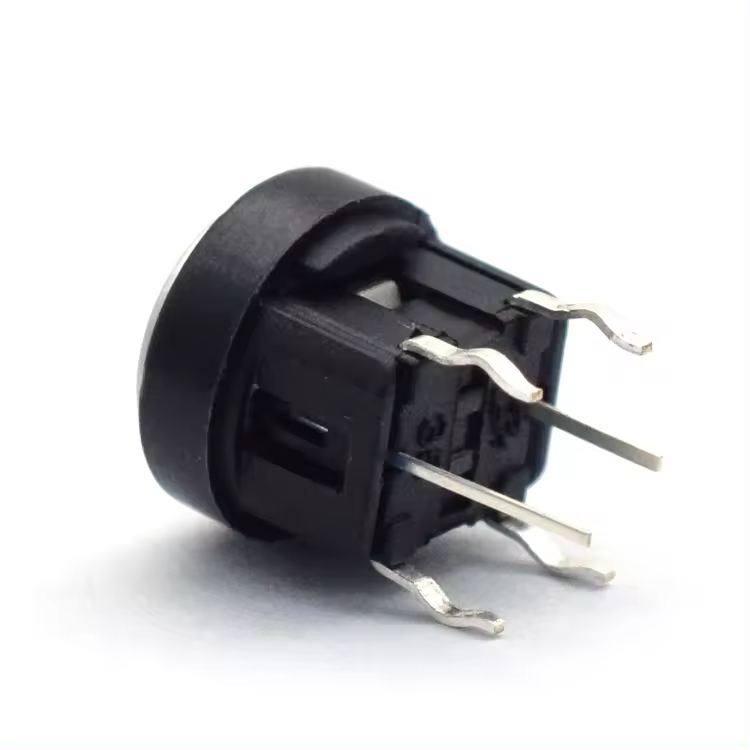

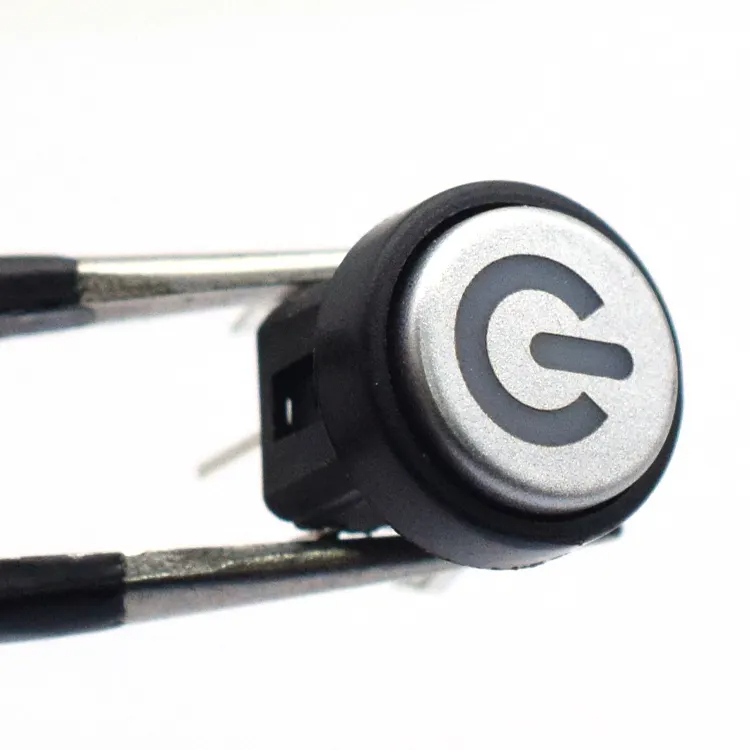

    product name push button switch led
    model number TS6684CJ
    Rated value 30mA 30VDC
    contact resistance ≤0.05Ω
    dielectric strength 250V AC
    Insulation resistance ≥100MΩ
    operating force 260±50gf
    life span ≥100000 times

    Product Detail

    Product Tags

    Main-02 (1) Main-03 (1) Main-01 (1) Main-04 (1)
