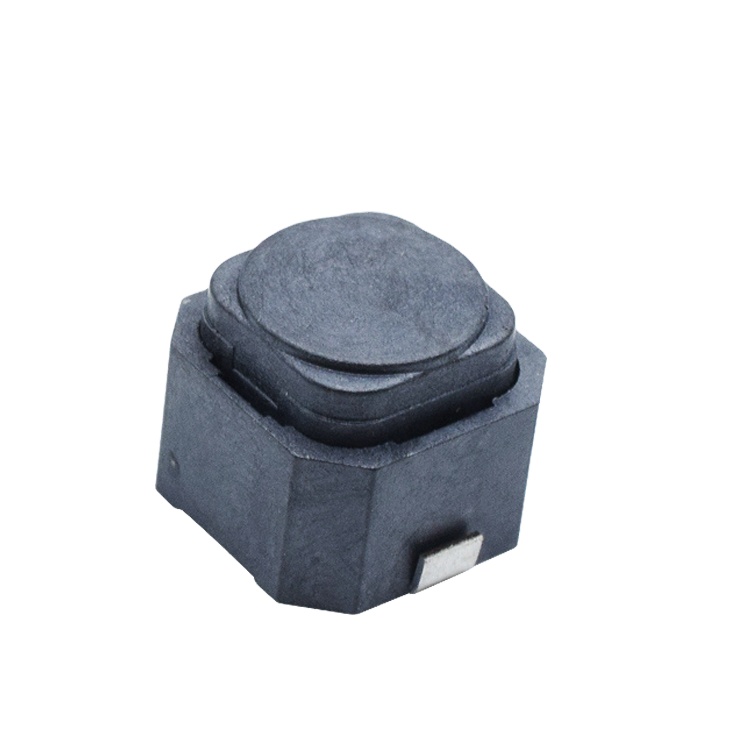

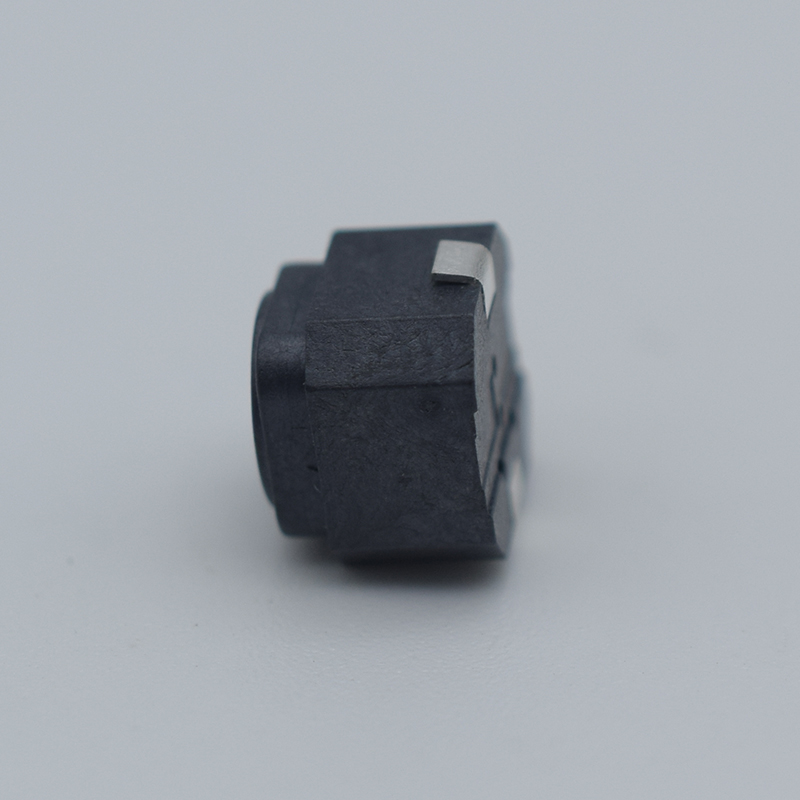

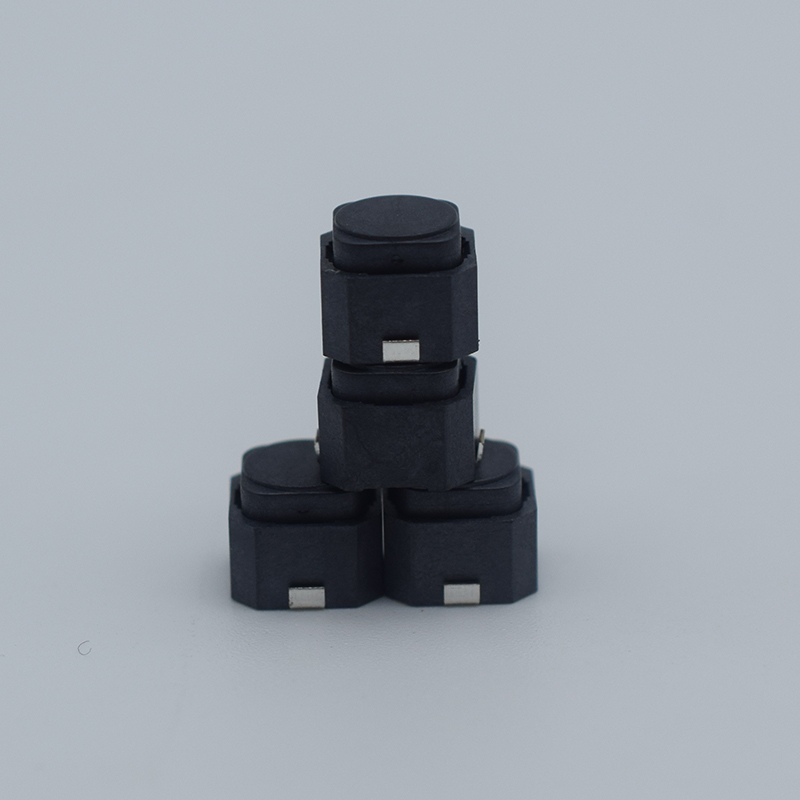

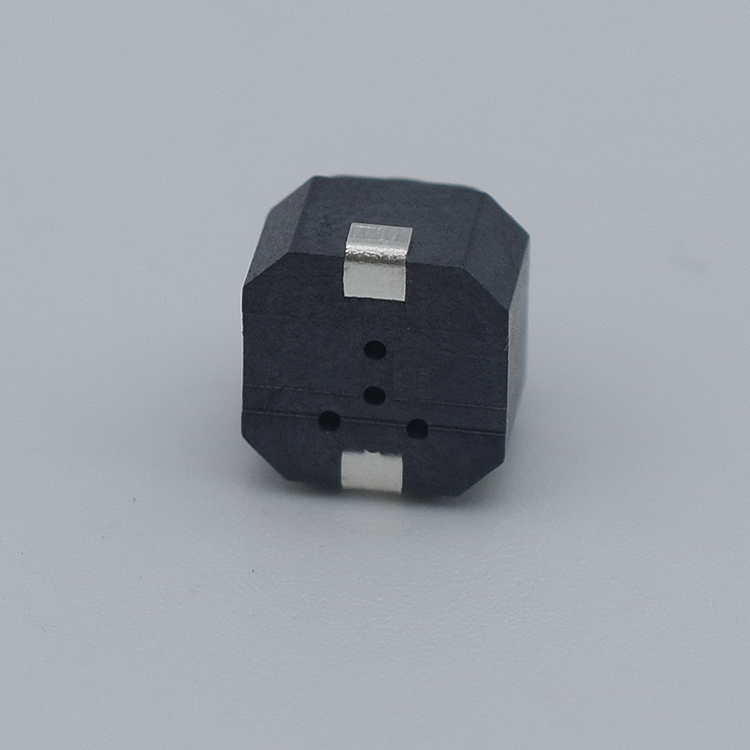

SKPMAPE010 6*6 silent tact switch EOPASACIA push button tactile switch
| Product Name | SKPMAPE010 6*6 silent tact switch EOPASACIA |
| Size | 6*6*5mm |
| Max. Current | 50mA |
| Max. Voltage | 12V DC |
| operation force | 250±50gf SKPMAPE010
160±30gf SKPMAME010 200±50gf SKPMANE010 300±40gf SKPMBHE010 |
| Operation temp | -20-85℃ |
| Model | TS665WS |
| Material | Plastic |
| Withstand Voltage | AC250V(50Hz)/min |
| Insulation Resistance | ≥100mΩ |
| Contact Resistance | ≤200mΩ |
