SKRTLAE010 Tactile Switch 3*5 SMD 3 Pin Button Switch ON-OFF Momentary Tact Switch

Short Description:

Certification:ROHS
Whether the smart:NO
Place of Origin:Guangdong, China
Brand Name:SHOUHAN
Model Number:TS35CA SKRTLAE010
Protection Level:IP40
Max. Current:50mA
Max. Voltage:12V DC
LED:Other
Insulation Resistance:100MΩ Min
Contact Resistance:100MΩ Max
Operating force:160±50gf
Full Travel:0.2±0.1mm
Operation life:50,000 Cycles
Operating temperature:-20℃~ +70℃
Operation type:Momentary OFF-(ON)
Product name:3*5 Switch Tactile
Dielectric voltage proof:250V AC (50Hz or 60Hz)/1min
Ratings:12V DC, 50mA

Product Detail

Product Tags



The SKRTLAE010 Tactile Switch 3*5 is designed to deliver exceptional performance in a compact and ergonomic form factor. With its small size of 3*5mm, this switch can be seamlessly integrated into a wide range of electronic devices, including remote controls, keyboards, game controllers, and more. Its SMD design allows for easy surface-mount installation, saving you time and effort during the assembly process.

This momentary tactile switch features a unique ON-OFF function, providing you with the flexibility to control your device with a simple touch. Whether you need to activate a certain function or power on/off your device, this switch ensures a smooth and responsive operation, enhancing the overall user experience.

Durability is a key factor when it comes to switches, and the SKRTLAE010 Tactile Switch 3*5 is built to withstand the test of time. Constructed with high-quality materials, this switch offers excellent resistance to wear, ensuring a long-lasting performance even under heavy usage. Its superior tactile feedback provides a satisfying click feel, allowing you to easily navigate through your device’s functions.

In addition to its outstanding performance and durability, this tactile switch also boasts easy installation and maintenance. The 3-pin design simplifies the connection process, while the SMD package eliminates the need for additional components or mounting hardware. This means that you can quickly and easily integrate this switch into your electronic devices without any hassle.

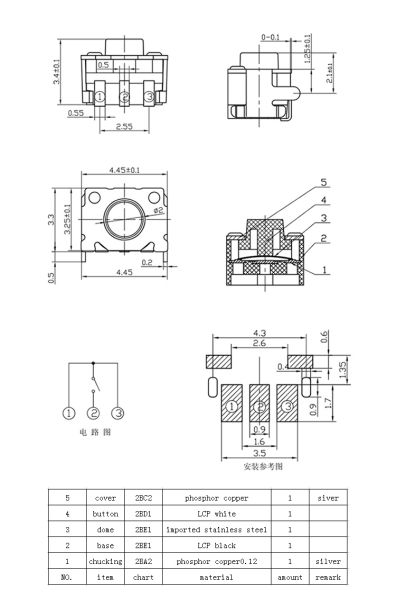

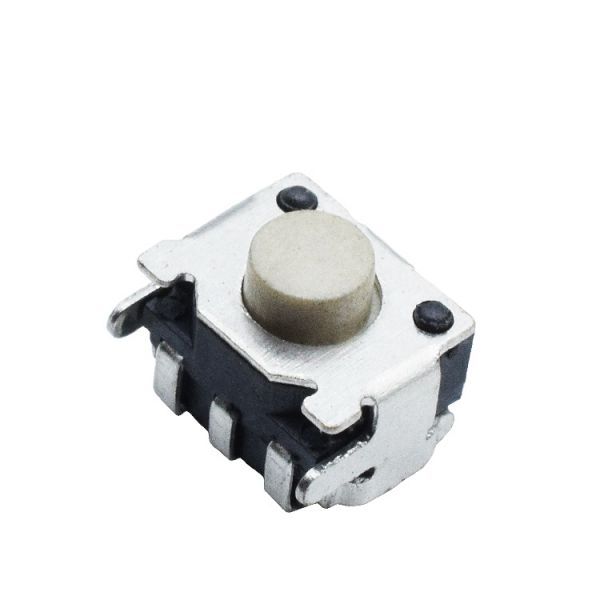

Hee0ec7ffa93546089c2365f310ef356cd HTB1jzhfogLD8KJjSszeq6yGRpXat
