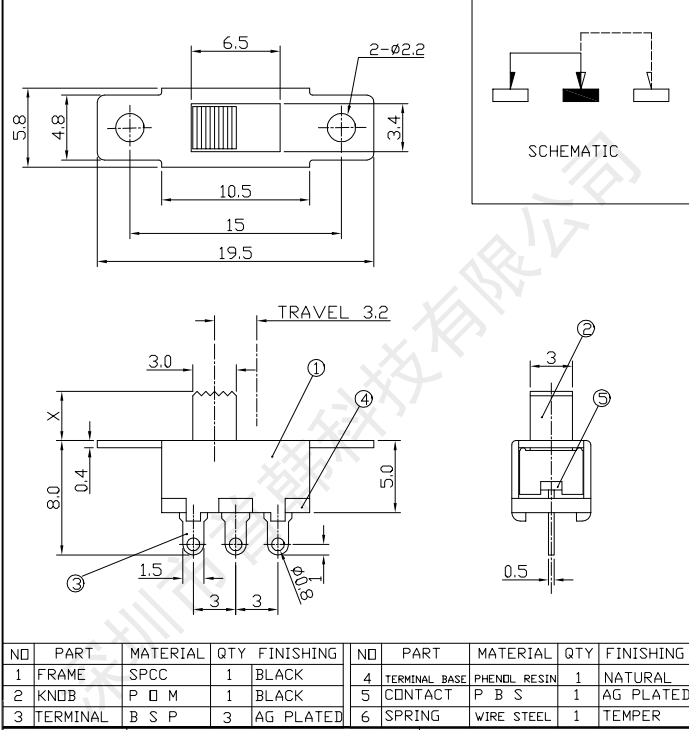

Title: slide switch 3pin SS12F15 1P2T on off switch
RATING: DC 50V  0.5A
CONTACT RESISTANCE: 50m ohm max
INSULATION RESISTANCE: 100M ohm max
WITHSTAND VOLTAGE: AC 500V for 1 minute
1:GENERAL SPECIFICATION 基本事项
1.1 RATING (额定值):DC 50V 500mA
PRACTICAL TEMPERATURE RANEG: ﹣10℃~+50℃.
STANDARD ATMOSPHEIC CONDITIONS :
UNLESS OTHERWISE SPECIFIED. THE STANDARD RANGE OF ATMOSPHERIC
CONDITIONS FOR MAKING MEASUREMENTS AND TESTS ARE AS FOLLOWS:
(1) AMBIENT TEMPERATURE : 5℃ TO 35℃;
1.3 (2) RELATIVE HUMIDITY : 45% TO 85%;
(3) AIR PRESSURE : 86Kpa TO 106Kpa.
CONTACT RESISTANCE
MEASURED AT 1KHz SMALL CURRENT(100 mA OR LESS) 50mΩ MAX.
INSULATION RESISTANCE
APPLY A VOLTAGE OF 500V DC FOR 1 MIN.
THE FOLLOWING CONTACE TEST METHOD:
(1)BETWEEN BODY AND CONDUCTOR.
(2) BETWEEN CONDUCTORS NOT TO BE CONTAC.
100MΩ MIN.
ELECT RIC STRENGTH
AC 500V(50-60Hz) FOR 1 MIN TRIP CURRENT:0.5mA
THE FOLLOWING CONTACE TEST METHOD:
(1)BETWEEN TERMINALS.
(2) BETWEEN INDIVIDUAL TERMINALS AND FRAME.
THOUT DAMAGE TO
PARTS ARCING OR
BREAKDOWN ETC.
OPERATION FORCE

LATERAL PUSH
PUSH FORCE : 200gf±50gf
TRAVEL TO CLOSURE
IN THE HORIZONTAL DIRECTION SWITCH HANDLE
OPRATION,WITH AN EQUAL TO 2TIMES THE THRUST OF
THE SWITSH FORM ONE POSITION TO THE NEXT GEAR,
MOVING DISTANCE MEASURING HANDLE.
2mm±0.2mm
STEM STRENGTH
AND ALONG THE RUNNING DIRECTION AT APEX HANDLE(500gf)
ON THESTRENGTH TEST,TIME IS 30SECONDS.
THERE SHALL BE NO DAMAGE ONAPPEARANCE MECHANICAL AND ELECTRICAL CHARACTERISTICS SHALL BE SATISFIED
Factory strength: with 13 years of industry experience, the company has passed ISO9001 certification, a number of patent certificates, more than 5300 cooperative customers, many customers of listed companies, 106 employees, 12 hardware punches, 18 injection molding machines, 26 full-automatic assembly machines, 32 full-automatic testing machines, 21 semi-automatic testing machines, 12 life testing machines and 25 other testing equipment
