Special Price for Micro Usb Female To Usb Connector - Waterproof electronic dip switch 8 position 1P 2P 3P 4P 5P 6P 8P single pole single throw 2.54 pitch piano type dip switch – Shouhan Detail:

Waterproof electronic dip switch 8 position 1P 2P 3P 4P 5P 6P 8P single pole single throw 2.54 pitch piano type dip switch
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
shouhan
Model Number:
2.54pitch(2-12PIN)
Max. Current:
25mA
Max. Voltage:
24VDC
Name:
DP series dip switch
insulation resistance:
100MΩ at 250VDC
contact resistance:
50mΩ max
dielectronic strenght:
500VAC /1min
operate life:
3000cycles
operate force:
400gf max
working temperature:
-20°C to 70°C
pin:
2-12pin
pitch:
2.54
materials:
PBTcopper-plated
Supply Ability
Supply Ability
400000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton package or reel tape.
Port
shenzhen
Lead Time:
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 7 To be negotiated

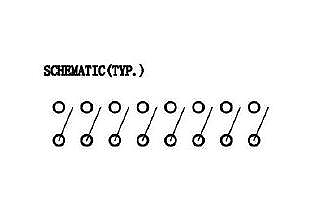

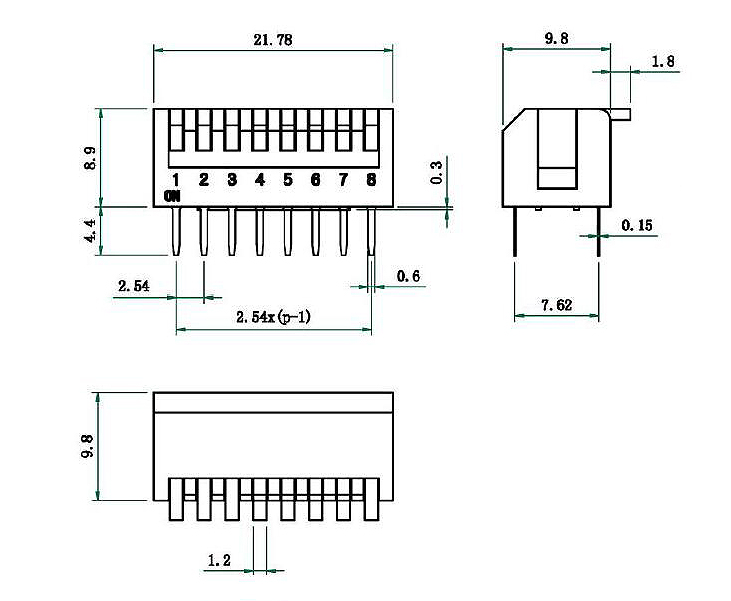

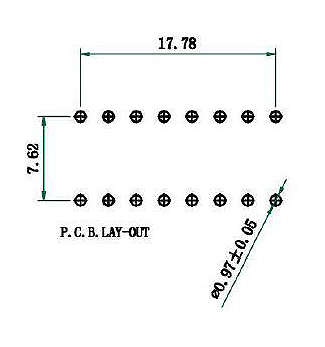

Product detail pictures:

Special Price for Micro Usb Female To Usb Connector - Waterproof electronic dip switch 8 position 1P 2P 3P 4P 5P 6P 8P single pole single throw 2.54 pitch piano type dip switch – Shouhan detail pictures
