SS24D02 DIP 12 pin four positions Vertical slide switch 2p4t slide switch

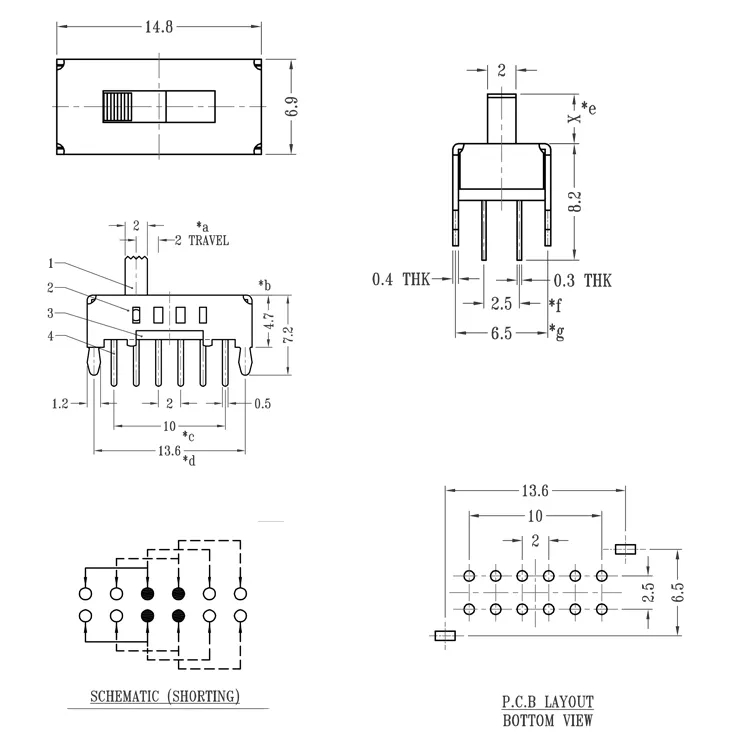

Slide Switch SS24D02 DIP 12 pin switch four position with selectable height handle
Specification
FUNCTION: Momentary action
CONTACT ARRANGEMENT: 2P4T SLIDE SWITCH
Electrical
ELECTRICAL SPECIFICATIONS：1.0A/DC24V
CONTACT RESISTANCE (CR)：≤50MΩ
INSULATION RESISTANCE(IR)：≥100MΩ DC250V
COMPRESSIVE STRENGTH (WV)：AC250V 1MINUTE
STORAGE HUMIDITY：<85%RH
ELECTRICAL LIFE：10,000CYCLES.
SWITCH TRAVEL：2.0±0.05mm
Environmental
OPERATING TEMPERATURE: -25˚C to 70˚C
Molde code:
