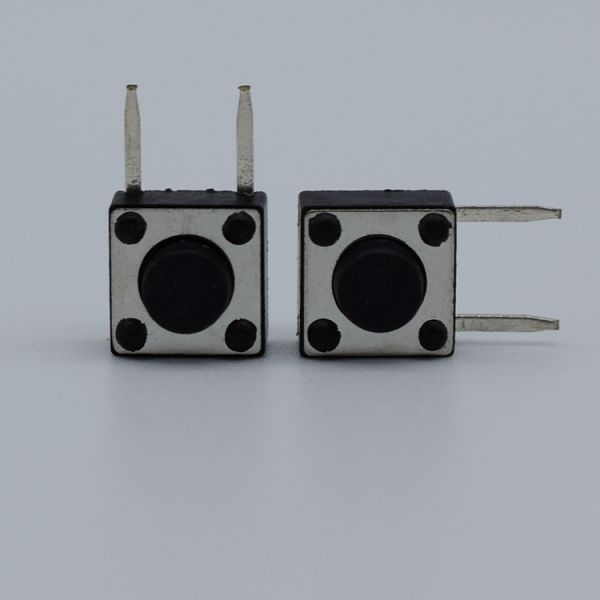

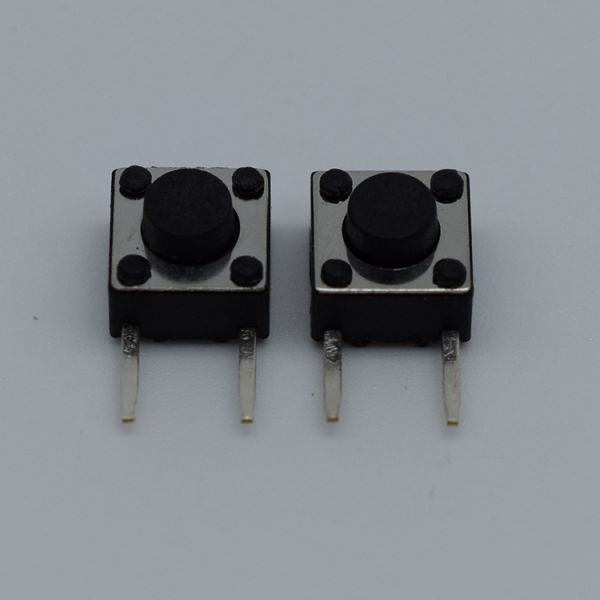

tactile switch 6*6*5 Side Press 2 Pin Button Switch Tactile Switch DIP

Short Description:

Certification:ROHS
Whether the smart:NO
Place of Origin:Guangdong, China
Brand Name:SHOUHAN
Model Number:TS665B2J
Protection Level:IP00
Max. Current:50mA
Max. Voltage:12VDC
LED:Other
Product name:2 pin DIP tactile switch 6x6mm
Operating Temperature Range:-20℃~+70℃
Ratings:12V DC, 50mA
Contact Resistance:≤100m Ω
Insulation Resistance:≥100M Ω
Dielectric voltage proof:250V AV (50HZ ) for 1 min
Operating Force:260±30gf
Full Travel:0.3±0.02mm
MECHANICAL LIFE:50,000Cycles
Operation type:Momentary OFF-(ON)

Product Detail

Product Tags

The Tactile Switch is developed using state-of-the-art technology to ensure optimal performance and reliability. It has a compact size of 6*6*5mm, making it suitable for various electronic devices and applications. With its side press design, this switch offers convenient operation and easy integration into your products.

One of the key features of our Tactile Switch is its tactile feedback. When pressed, it provides a satisfying click sensation that assures the user that the button has been activated. This feedback not only enhances the user experience but also improves the overall functionality of your device.

H2f09a33c330c468ca6fa4574feef503c0 H126aed82084e4e5fb25d70ffa78e5b04R H811c2d106f3944e7859f7621918914f62

HTB1U62jXa67gK0jSZFHq6y9jVXa7
