    Temperature-resistant 3 PIN horizontal in-line DC002 power socket all copper 3.5*1.0/1.1/1.3 inner needle DC power socket jack

    Temperature-resistant 3 PIN horizontal in-line DC002 power socket all copper 3.5*1.0/1.1/1.3 inner needle DC power socket jack Featured Image
    • Temperature-resistant 3 PIN horizontal in-line DC002 power socket all copper 3.5*1.0/1.1/1.3 inner needle DC power socket jack
    • Temperature-resistant 3 PIN horizontal in-line DC002 power socket all copper 3.5*1.0/1.1/1.3 inner needle DC power socket jack
    • Temperature-resistant 3 PIN horizontal in-line DC002 power socket all copper 3.5*1.0/1.1/1.3 inner needle DC power socket jack
    • Temperature-resistant 3 PIN horizontal in-line DC002 power socket all copper 3.5*1.0/1.1/1.3 inner needle DC power socket jack
    • Temperature-resistant 3 PIN horizontal in-line DC002 power socket all copper 3.5*1.0/1.1/1.3 inner needle DC power socket jack

    Short Description:



    product name DC socket
    Product number DC002
    Rated electrical load 30V 0.5A
    Contact resistance ≤0.03Ω
    Insulation resistance ≥100M Ω
    Pressure resistance AC500V(50Hz)/min
    Insertion force 3-20N
    life 5000 cycles

    Product Detail

    Product Tags

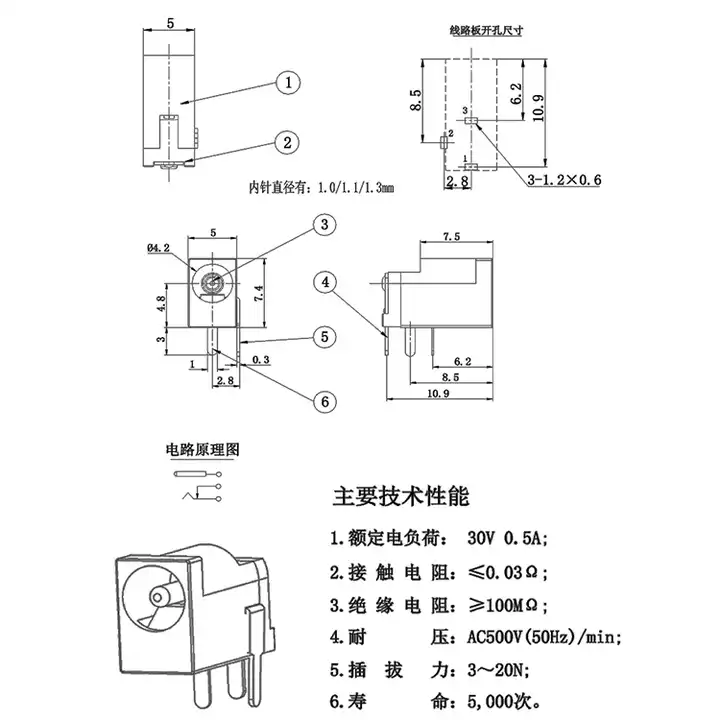

    Hb665b22ef61b41baad562321039a90778.jpg_720x720q50
