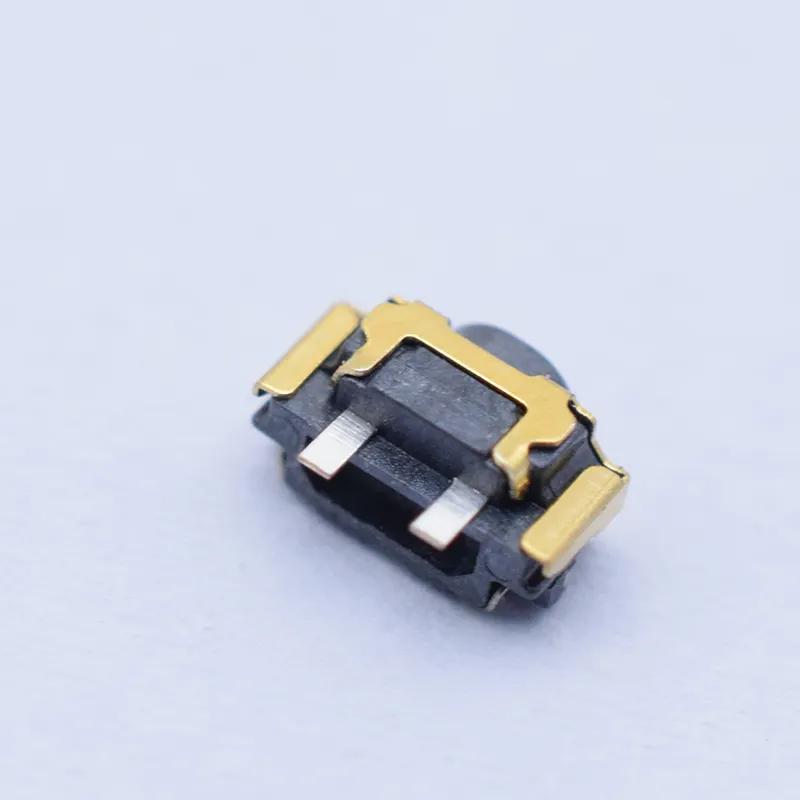

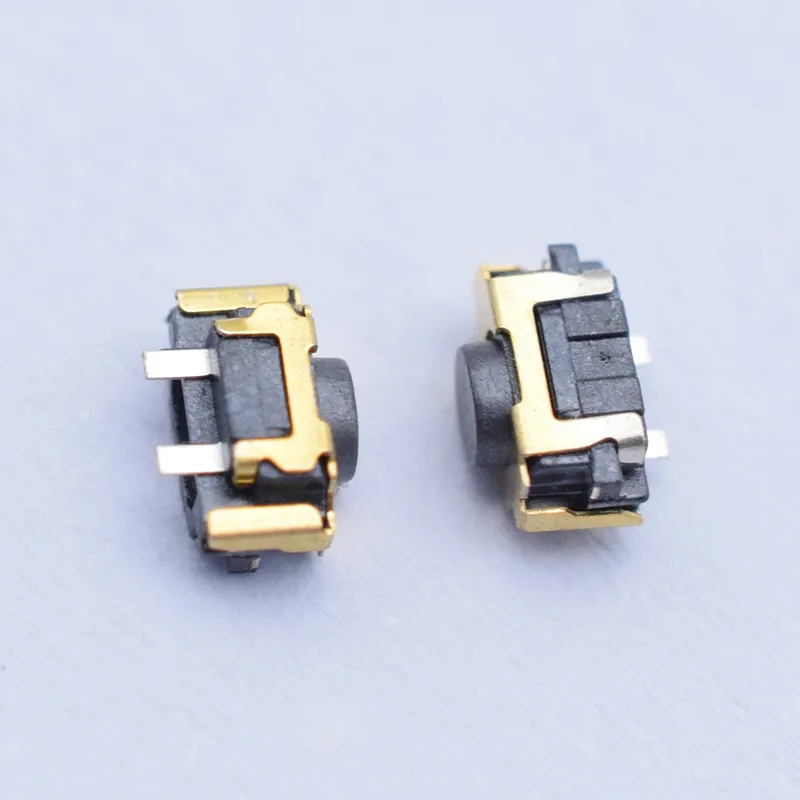

    TS25CA SKSLLCE010 Gold plated smd 12V 2pin tact switch type mini Side side button Tactile Switches

    TS25CA SKSLLCE010 Gold plated smd 12V 2pin tact switch type mini Side side button Tactile Switches Featured Image
    • TS25CA SKSLLCE010 Gold plated smd 12V 2pin tact switch type mini Side side button Tactile Switches
    • TS25CA SKSLLCE010 Gold plated smd 12V 2pin tact switch type mini Side side button Tactile Switches
    • TS25CA SKSLLCE010 Gold plated smd 12V 2pin tact switch type mini Side side button Tactile Switches
    • TS25CA SKSLLCE010 Gold plated smd 12V 2pin tact switch type mini Side side button Tactile Switches
    • TS25CA SKSLLCE010 Gold plated smd 12V 2pin tact switch type mini Side side button Tactile Switches
    • TS25CA SKSLLCE010 Gold plated smd 12V 2pin tact switch type mini Side side button Tactile Switches

    Short Description:

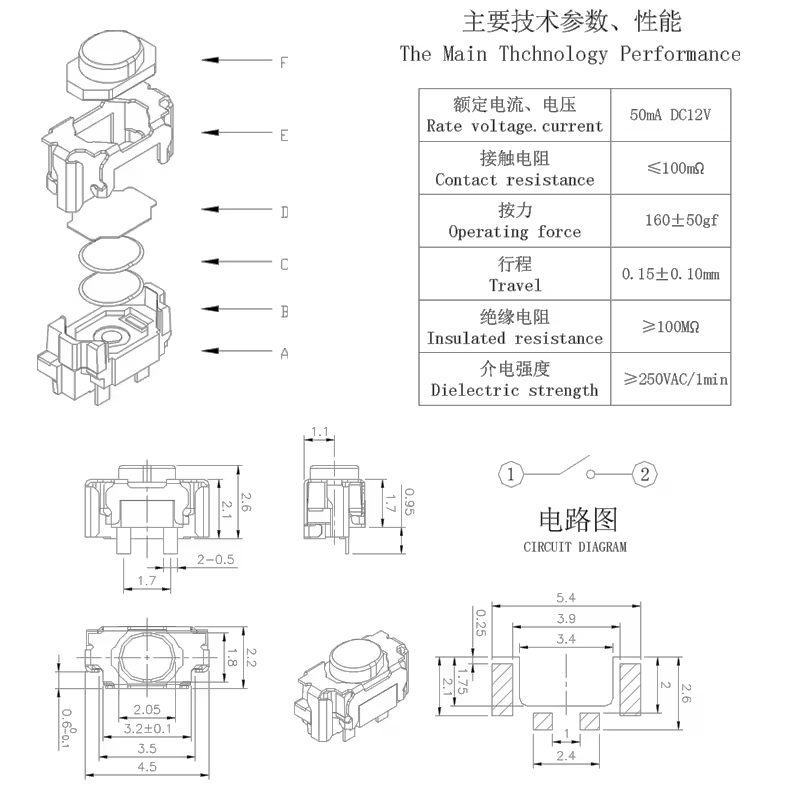

    product name 2.2*4.5*2.6H tact switch
    Model Number TS25CA
    Rate voltage.current 50mA DC12V
    Insulated resistance ≥100MΩ
    Contact resistance ≤100mΩ
    Life of machinery ≥100000 times
    Operating temperature range -40 to 80℃
    Operating force 160±50gf
    Travel 0.15±0.10mm
    Dielectric strength ≥250VAC/1min

    Product Detail

    Product Tags

    Main-03 Main-01 Main-05
