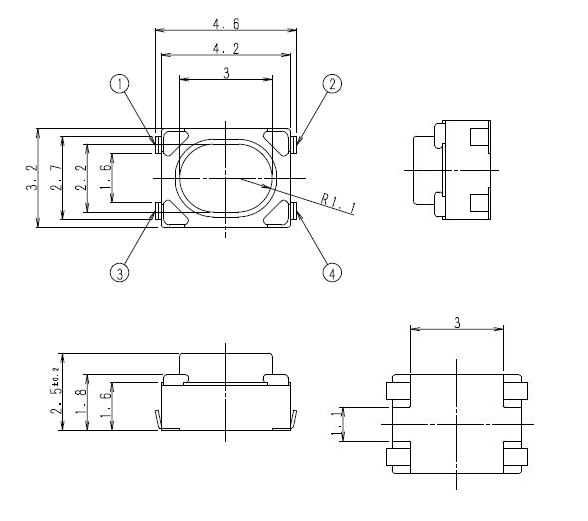

TS3425BA 3x4x2.5 tact switch white color TS3425BA 3×4 J bend smd smt tact switch

Title: white color TS3425BA 3×4 J bend smd smt tact switch

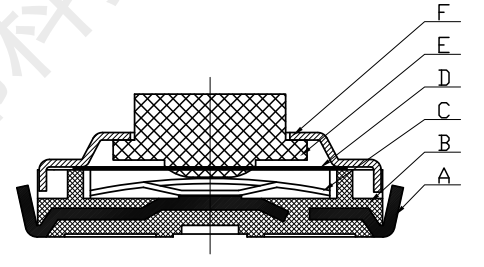

MATERIALS

• F : LC2 0.1 stainless steel

• E: LD15 PPA in color white

• D: LF5 0.05

• C : IE2 stainless steel sliver alloy

• B: PPA in color black

• A: LA7 brass 0.2

Rating: 12V DC 50mA

Operation Force： 260±30gf

Being measure at across spring piece and across Key stoke for ergo meter.

Contact resistance ≤ 100 M Ω

Insulation resistance ≥ 100 M Ω.

Life：50000 Cycles Min.

Operation at a rate of 30-50 cycles a minute.

1. Notification Items

② This product complies with RoHS Directive (on the restriction of the use of certain hazardous substances

in electrical and electronic equipment) (2011/65/EU).

③ The materials used in this product contain only the substances listed in the List of Existing Chemical Substances

specified in ‘Act on the Evaluation of Chemical Substances and Regulation of Their Manufacture, etc’.

1.2 Application Limits

The following shall be described for safety precaution:

[Limitation of Application]

- This product has been designed and manufactured for general electronic devices,

such as home electronics, soffice equipment, information device and communication devices.

In an event that this product is used for more sophisticated applications requiring higher safety and

reliability and its failure or malfunction of this product may impose damage to human life or property,

agreement on product specifications for approval suitable for such applications are required.

Such applications shall include the following:

aircraft equipment, aerospace equipment, disaster prevention / crime prevention equipment,

medical equipment, transportation equipment (vehicles, trains, ships, etc.), information

processing equipment that are highly publicized, and other equivalent equipment

- Regardless of its applications, in an event that this product is used for the equipment requiring

high safety levels, place protective circuits or redundant circuits and perform safety tests to improve

your products safety.
