HOT SALE USB 90 degree interface plug connector 19.5MM iron USB AF side plug female base USB SMT straight connector for laptop

Short Description:

Product description

Item name: USB 3.0 19.5

Rating: DC 30V 0.2A

Insulation resistance: ≥1000mΩ min. 500V DC

Dielectric strength: 250V AC for 1 min

Contact resistance: ≤50mΩ

Insertion force: ≤35N

Extraction force: ≥10N

Usage:

-Mainly used in high end industries,such as digital camera interface products,computer accessories,electronic toys,mobile phone charging interface and other products need to charge.

Send email to us

Product Detail

Product Tags

Product advantages: fast delivery, free samples,products with RoHS certification, laser soldering process, cycle life of more than 300,000 times, guaranteed after-sales service, technical support and good service attitude
Application fields:Computer USB external port, charging equipment,instruments and equipment, consumer electronics, household appliances, security products
Factory strengths: with 13 years of industry experience, the company has passed ISO9001 certification, a number of patent certificates, more than 5300 cooperative customers, many customers of listed companies, 106 employees, 12 hardware punches, 18 injection molding machines, 26 full-automatic assembly machines, 32 full-automatic testing machines, 21 semi-automatic testing machines, 12 life testing machines and 25 other testing equipment

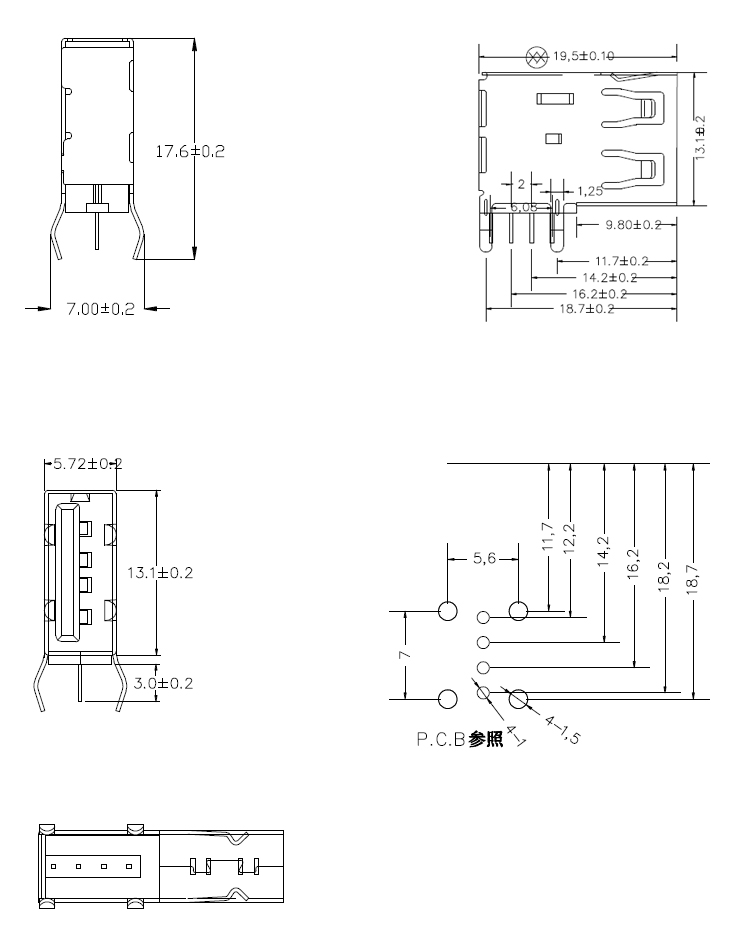

NOTES:
1.Material Specification:
1)INSULATION MATERIAL THERMOPLASTIC.
2)SHELL:COPPER ALLOY/SPCC,T:0.30mm
PLATING:NICKEL
3)TERMINAL:COPPER ALLOY,T:0.25mm
PLATING:GOLD/TIN PLATED.
2.ELECTRICAL CHARACTERISTIC:
1)INSULATION RESISTANCE:100MΩ MIN.
2)CONTACT RESISTANCE:30mΩ MAX.
3)WITHSTANDING VOLTAGE:500V AC.
3.MECHANICAL CHARACTERISTICS:
1)INSERTION FORCE:3.57Kgf MAX.
2)EXTRACTION FORCE:1.02Kgf MIN.
ORDERING INFORMATION
Storage environment: dry room temperature environment, avoid contact with acid and humid climate

STANDARD ATMOSPHEIC CONDITIONS:UNLESS OTHERWISE SPECIFIED THE STANDARD RANGE OF ATMOSPHERIC CONDITIONS FOR MAKING MEASUREMENTS AND TESTS ARE AS FOLLOWS:
(1) BETWEEN BODY AND CONDUCTOR: 5ºC TO 35℃
(2) BETWEEN CONDUCTORS NOT TO BE CONTACT：45% TO 85%
(3) PRESSURE：86Kpa TO 106Kpa
SOLDERABILITY TEST:THE TOP OF THE TERMINALS SHALL BE DIPPED 1mm IN THE SOLDER BATH OF 250±5℃ FOR 5±0.5 SECONDS
RESISTANCE TO SOLDERING HEAT TEST:
REFLOW SOLDERING CONDITIONS:
PREHEAT:TEMPERATURE ON THE COPPER FOIL SURFACE SHOULD REACH 180 .120 ℃ S AFTER THE P.C.B ENTERED INTO THE SOLDERING EQUIPMENT.
TALLEST TEMPERATURE:TEMPERATURE ON THE COPPER FOIL SURFACE SHOULD REACH THE PEAK TEMPERATURE OF 260±5 WITH IN 20 SECONDS. ℃
SOLDERING IRON METHOD: BIT TEMPERATURE 330±5℃ APPLICATION TIME OF SOLDERING IRON3±0.5 SEC HOWEVER EXCESSIVE PRESSURE SHALL NOT BE APPLIED TO THE TERMINAL
