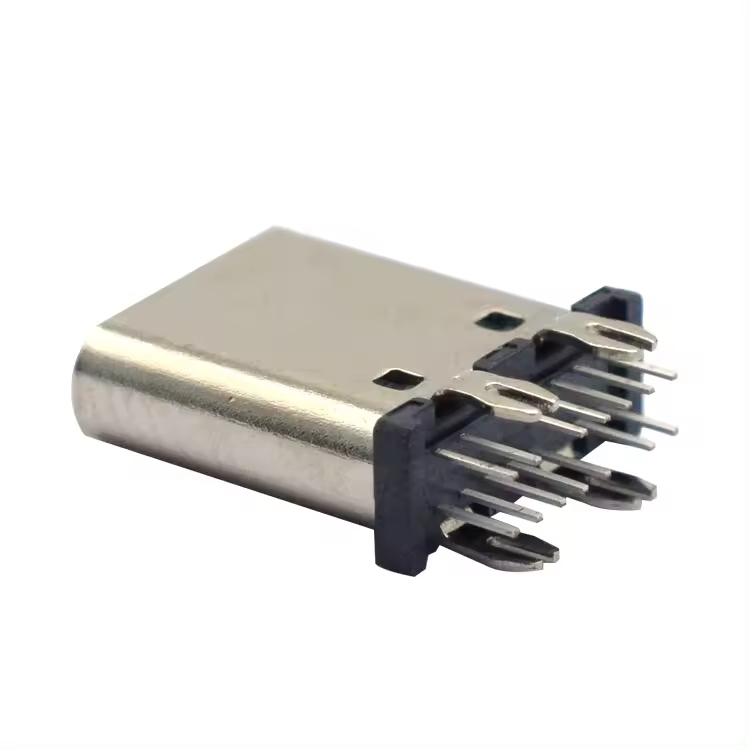

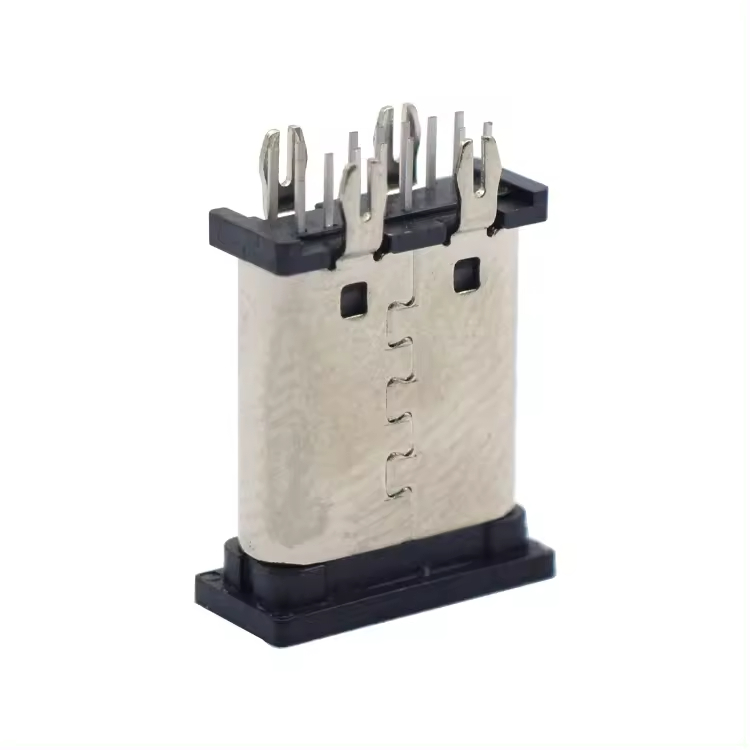

    USB type C charging connector 14P vertical plug-in usb type c female connector

    USB type C charging connector 14P vertical plug-in usb type c female connector Featured Image
    • USB type C charging connector 14P vertical plug-in usb type c female connector
    • USB type C charging connector 14P vertical plug-in usb type c female connector
    • USB type C charging connector 14P vertical plug-in usb type c female connector
    • USB type C charging connector 14P vertical plug-in usb type c female connector
    • USB type C charging connector 14P vertical plug-in usb type c female connector
    • USB type C charging connector 14P vertical plug-in usb type c female connector

    Short Description:

    product name type c
    model number TYPE-C 14P
    mating force 0.5-2.0kgf
    unmating force 0.8-2.0kgf
    durability 10000 cycles
    current rating 5A MAX
    Voltage Rating 20V MAX
    dielectric withstand voltage 100VAC
    contact resistance 40mΩ  MAX
    insulation resistance 100mΩ Min
    Operating temperature -40℃~+85℃

    Product Detail

    Product Tags

    Main-02 Main-03 Main-04 Main-05
