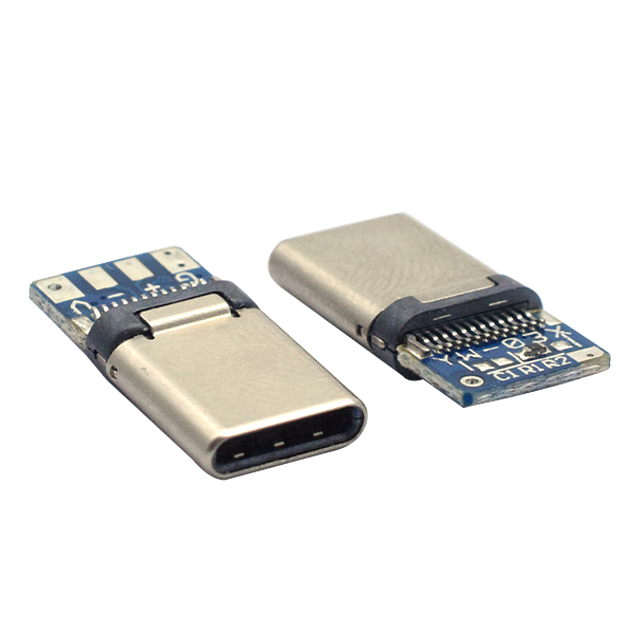

    usb type c male connector 24 pin type c male electronic Charging connector

    usb type c male connector 24 pin type c male electronic Charging connector Featured Image
    • usb type c male connector 24 pin type c male electronic Charging connector
    • usb type c male connector 24 pin type c male electronic Charging connector
    • usb type c male connector 24 pin type c male electronic Charging connector
    • usb type c male connector 24 pin type c male electronic Charging connector

    Short Description:

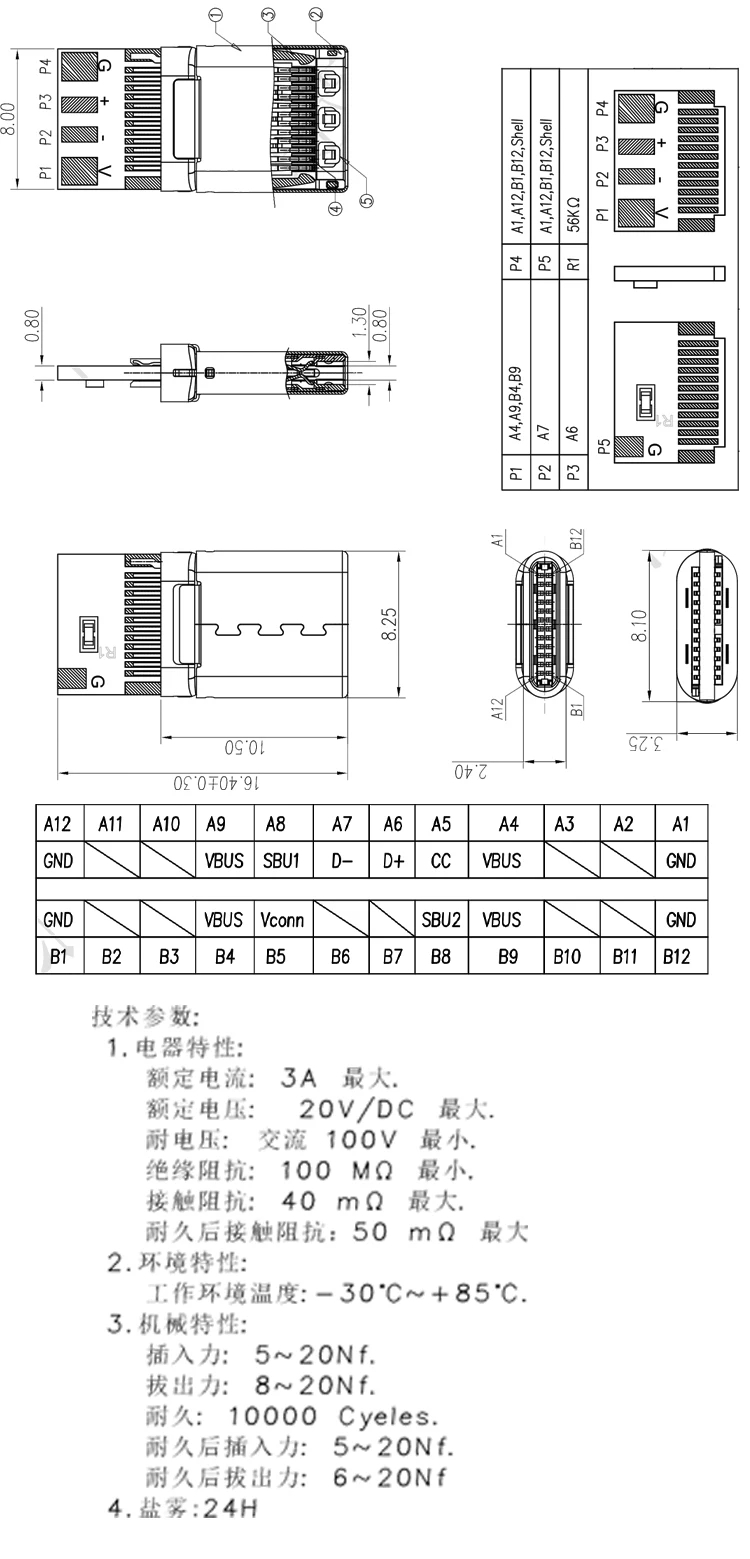

    product name usb type c 24pin male connector
    model number type C 24pin
    Rated current 3A
    Rated voltage 20V/DC
    Service temperature range -30~+85℃
    Insertion force 5-20N
    Drawing force 8-20N
    Contact resistance 40mΩ  MAX
    Insulation resistance 100mΩ MIN
    durability 10000 times+

    Product Detail

    Product Tags

    Detail-03 Detail-04 Detail-05
