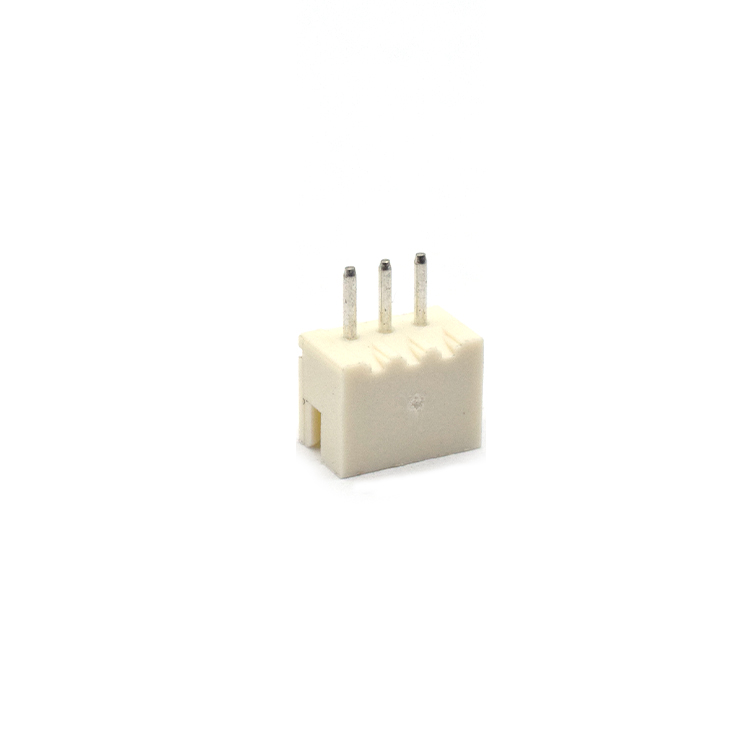

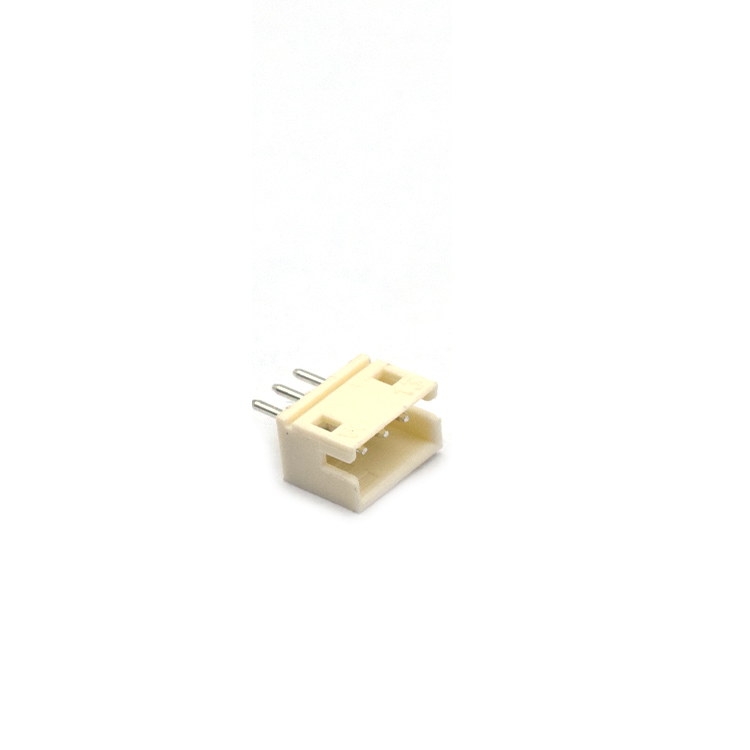

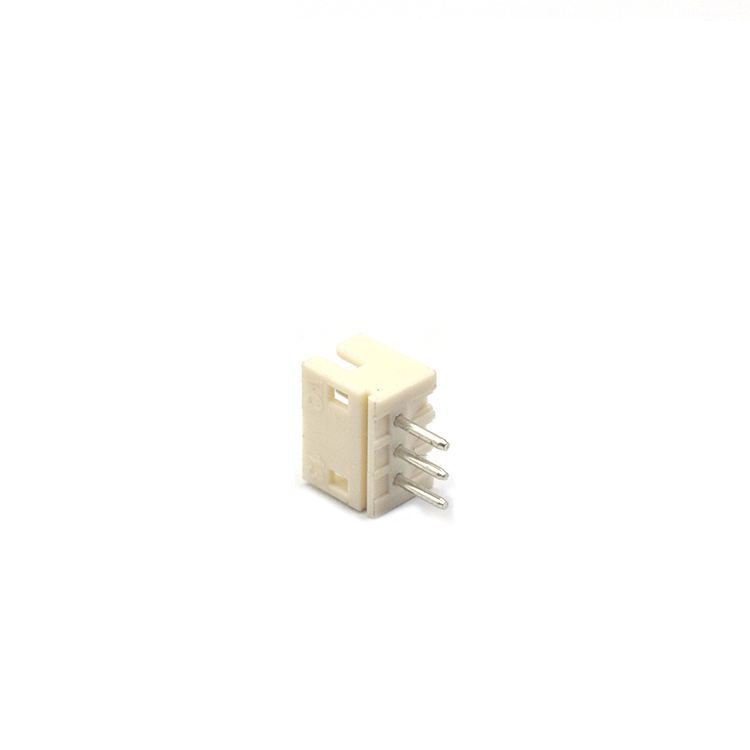

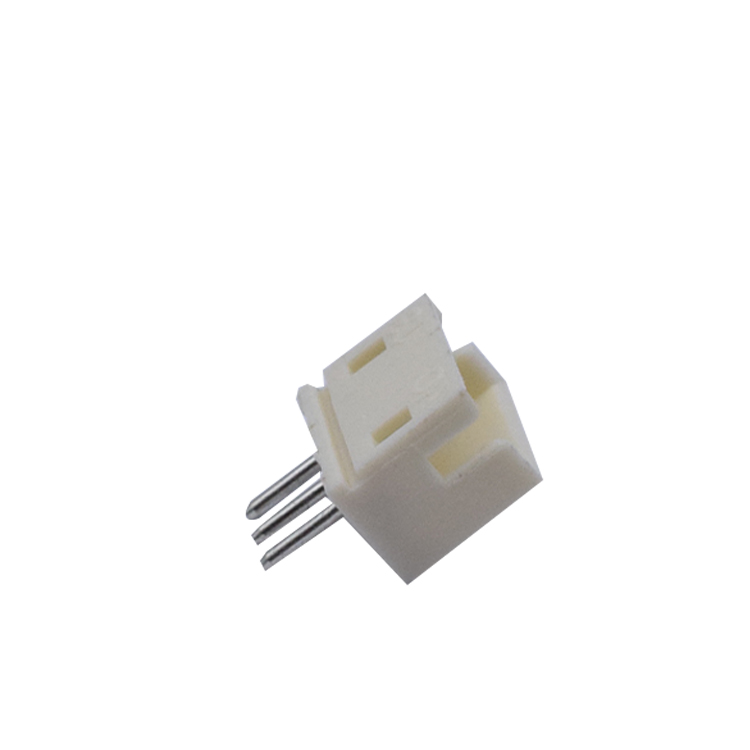

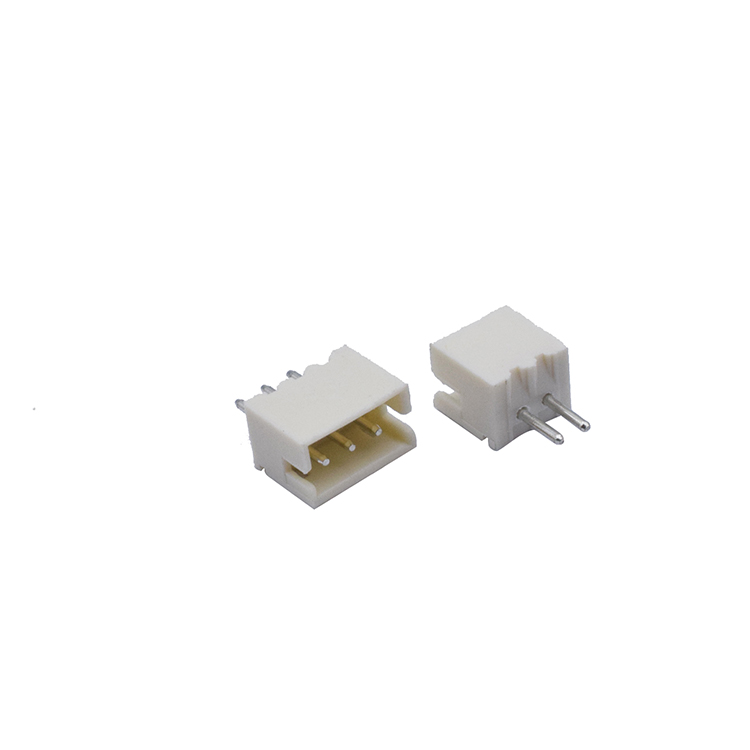

Wafer Connector ZH 1.5mm Vertical Female DIP Socket 1A 125V 2 PIN TO 16 PIN

Material

Housing: Nylon46 UL94V-0.
Color: Beige Color.
Contact: Phosphor bronze 0.3mm.
Solder tabs:Phosphor bronze 0.25mm.
Plating: Tin Plating on Contact.
Tin Plating on Solder Tail.

Electrical Specification

Operation Voltage: 125V AC/DC.
Current Rating: 1 Ampere AC/DC per Contact.
Contact Resistance: 20mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Withstanding Voltage: 500V AC per Minute.

Environmental

Operating Temperature: -25°C to +85°C.
Package: 1,000pcs/Bag.
RoHS Compliance.

Type of Wafer Connector

The products are mainly divided into two categories: rubber shell and terminal;

The material of plastic shell products are PBT, PA66, HTN, LCP, ABS.

The material of the terminal is in line with RosH standard,

including phosphor bronze C5191 and brass C2680
